AZ6/7 Housing for the Nikon Z6 & Z7 Mirrorless Camera!
In our never ending quest to offer the latest and greatest possible equipment to the underwater photographer/videographer, we offer our housing for the Nikon Z6 & Z7 Mirrorless, Interchangeable Lens Camera! Continuing in Aquatica’s reputation for offering premium quality and at affordable prices, the AZ6/7 housing has the finest ergonomics and control accessibility combined with the famed ruggedness of our all aluminum construction and distinctive hard coating.
About the Cameras
The Nikon Z6/7 Mirrorless cameras are one of Nikon’s entries into the ever growing mirrorless camera market. Essentially mirrorless versions of the Nikon D850 and D750, these cameras follow the trend of most major manufacturers going mirrorless for their main pro/consumer offerings. Both camera bodies have an identical control layout, leading to Aquatica being able to use one housing for the 2 cameras. The main difference between the 2 cameras would be the Z6 uses a 24MP full frame sensor and the Z7 has a 45.7MP sensor. The Z6 also has a 25% faster maximum frame rate than the Z7 since it has to move smaller files. Both cameras capture 4K video though the Z6 creates down sampled 24MP images whereas the Z7 uses a DX-cropped Super35 mode. The cameras have a new Z mount system to support the new line of Z mount lenses; however, Nikon has created the FTZ mount adapter to allow owners of traditional Nikkor F-Mount lenses with these new cameras.

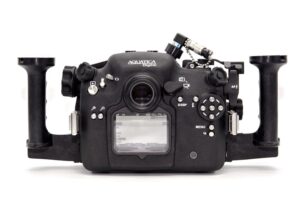

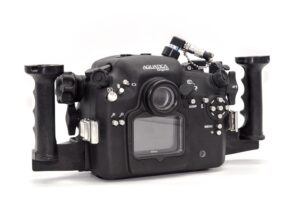

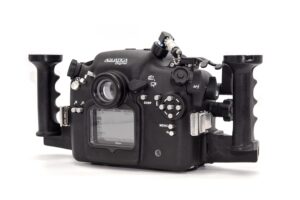

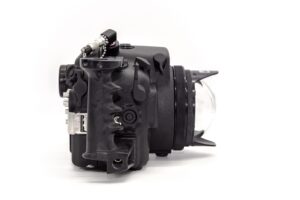

About the Housing
As to be expected with all Aquatica housings, it is CNC machined from 6061 T6 Aluminum with a MIL-A-8625 anodized coating with a baked on, extra tough powder coat paint. All control shafts and push buttons are made from T304 stainless steel. This, as for all our housings, will take a licking and keep going!
The housing supports not only the new Z-mount lenses but also the FTZ Adapter. The adapter can be removed from the camera without first removing the camera from the housing. There is also a lens release for both F and Z mounts. As usual, all camera functions can be accessed by the housing. Two items of note that are specific to this housing:
The Sub Selector center press and AF-ON control’s ergonomic placement (easily accessible with the shooter’s right thumb) allows the user to lock exposure or focus and take pictures.
The “+” and “ –“ buttons have been moved, for access by the left thumb, next to the playback button. This allows the user to quickly zoom and check if the image is in focus.
All housing controls are spring loaded and self centering where needed. The user simply needs to install the mounting tray on the camera and slide the tray on the stainless steel guide rails. It couldn’t be simpler!
In order to protect your expensive electronic gear from the elements, our Surveyor Vacuum System (valve and pump) is now included as standard equipment with all AZ6/7 housings. The vacuum system will provide that extra layer of security since the user can verify that if air is not seeping into the housing the water definitely will not either.
Specifications
Part Number:
- 20086-NK-VC: with double Nikonos bulkheads & complete Surveyor vacuum circuitry
20086-KM-VC: with single Ikelite bulkhead & complete Surveyor vacuum circuitry
20086-OPT-VC: with dual optical bulkheads, LED trigger & complete Surveyor vacuum circuitry
Composition
Aerospace grade 6061 T6 Aluminum with MIL-A-8625 Anodized Coating then finished with a baked on, super tough, abrasion resistant powder coat paint. Control shafts and all push buttons are T304 Stainless Steel
HDMI
Large 23.75mm (.950 inch) HDMI Bulkhead Opening
Depth Rating
90m ~ 300 ft. Can be upgraded to 130m, ~ 450 ft with our deep spring kit
Weight
2.88 kg ~ 6.35lb
Dimensions
364mm x 158mm x 160mm (W x H x D) ~ 14.3” x 6.2” x 6.3”
Port System
Compatible with all Aquatica DSLR sized Bayonet Mount Ports

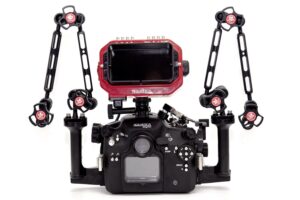

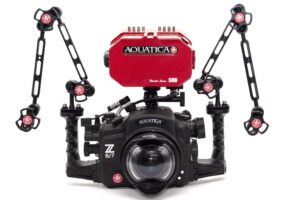

Supported Accessories
- Aqua View and Aqua View 45 viewfinders

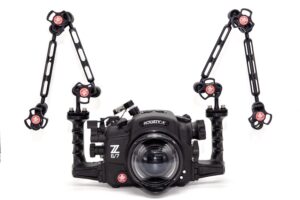

- Full line of the Delta 3 Arm System
- 5HD Monitor
- Aquatica Close Up Kit
- Aquatica Housing Lanyard Kit
Control Layout
- Port lock release
- On-Off lever
- Shutter release
- ISO button
- Record button
- Exposure compensation button
- Sub-command dial (front)
- Back focus button (AF)
- Sub selector center press (AEL)
- Release mode / self-timer button
- Menu button
- Multi selector buttons
- Photo mode “i” menu button
- DISP button
- Photo/movie selector
- Main command dial (rear)
- Monitor mode button
- Delete/trash button
- Playback button
- Mode dial
- plus button
- minus button
- Zoom focus gear dial
- Fn2 button
- Fn1 button
- F-mount release button
- Z-mount release button
