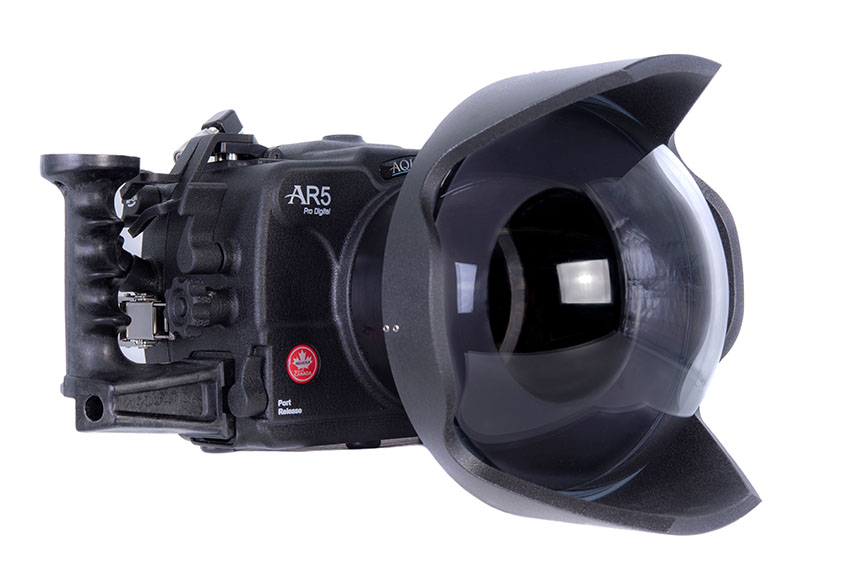

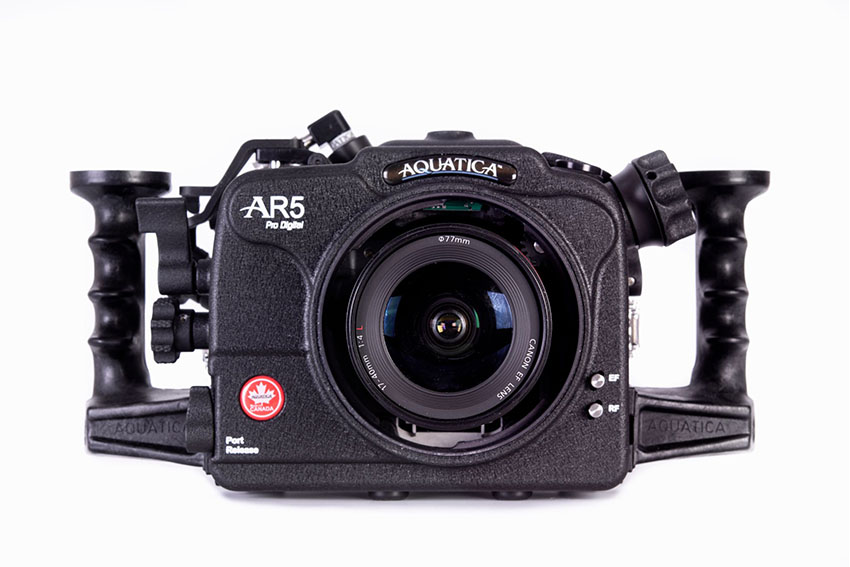

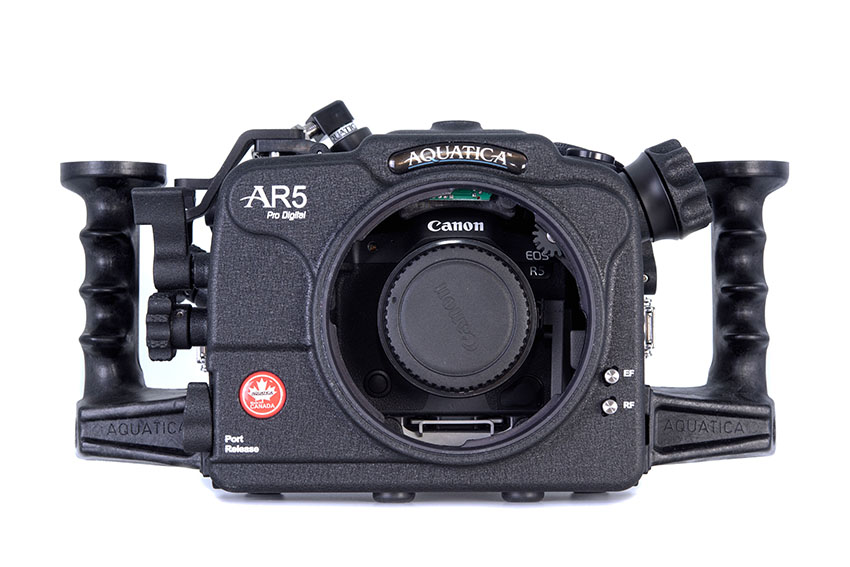

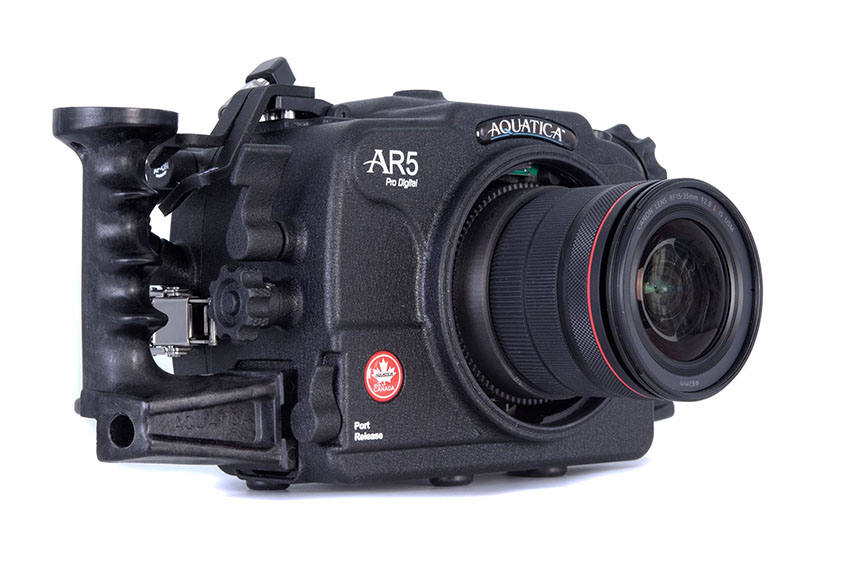

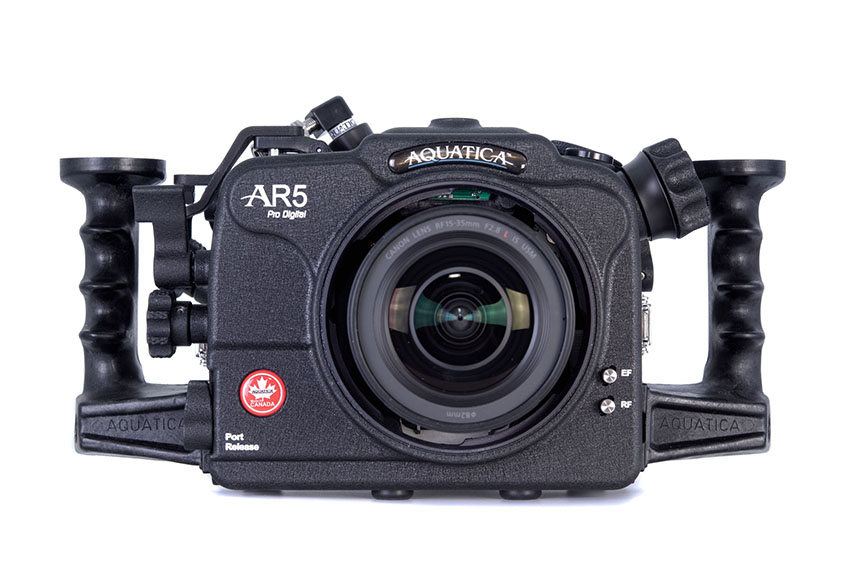

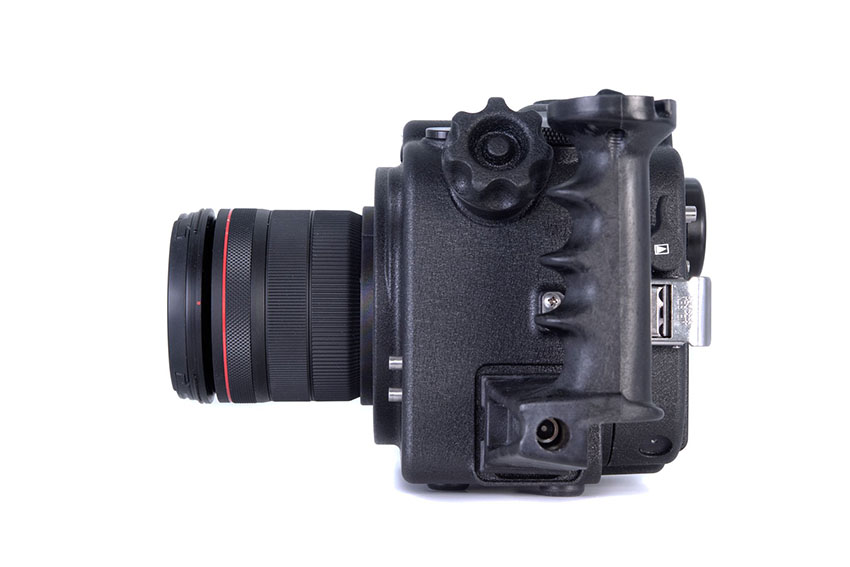

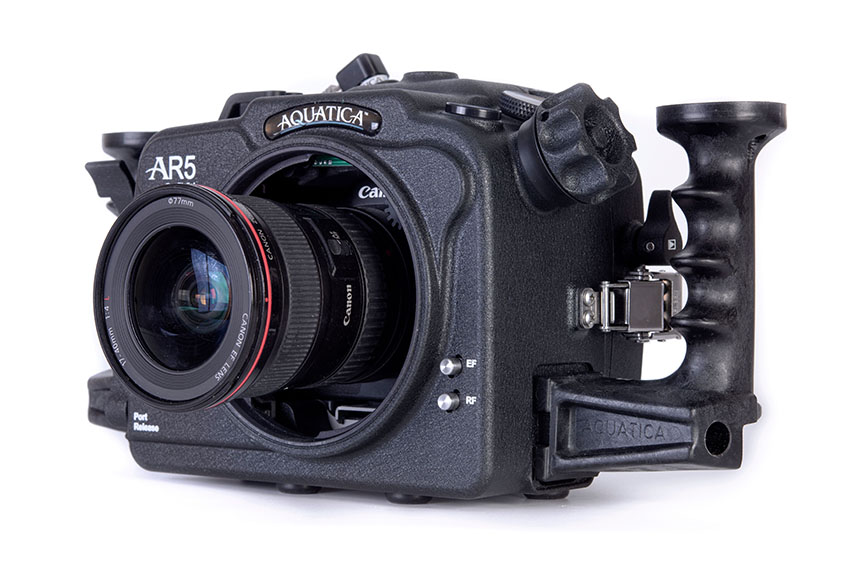

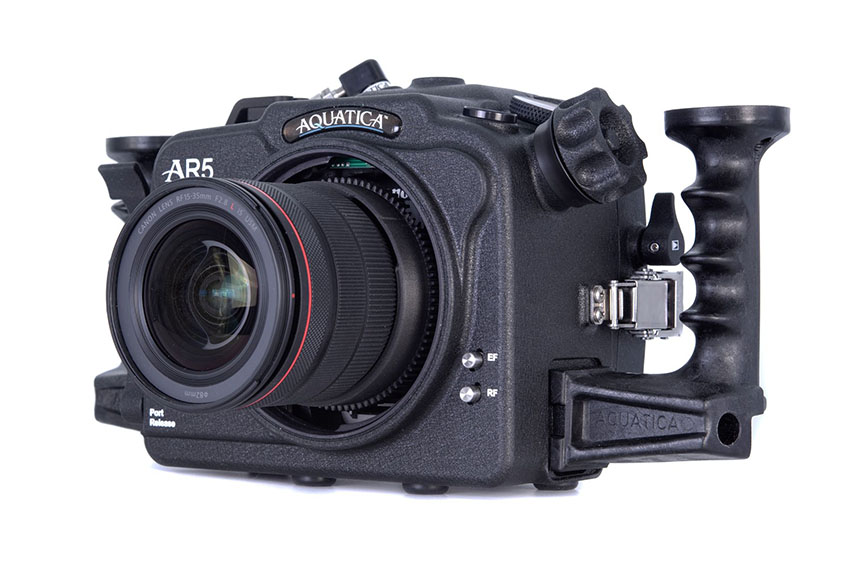

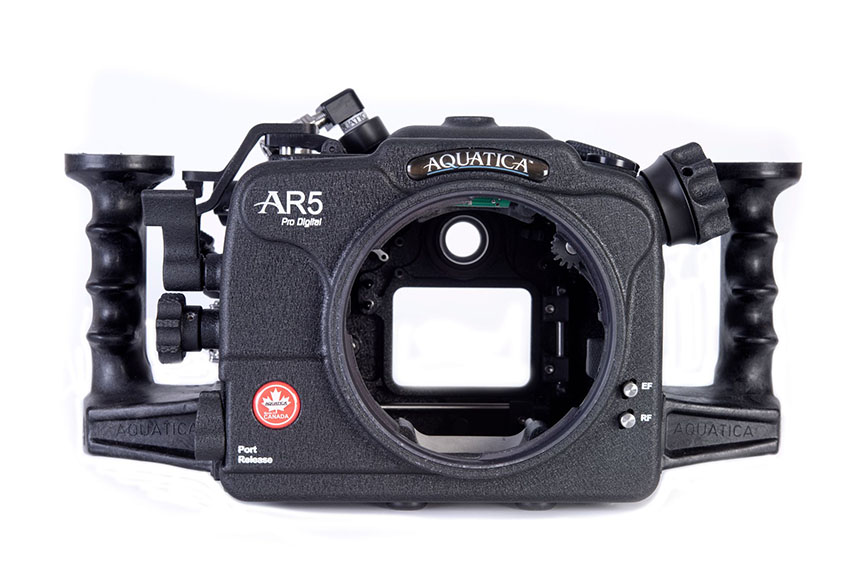

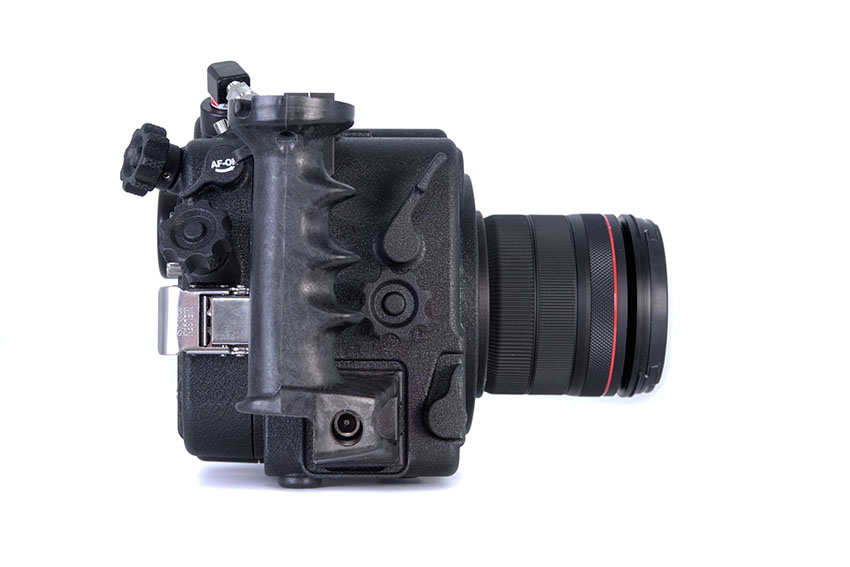

Aquatica AR5: 20091

We are proud to present one of our latest housings: The AR5 for the Canon EOS R5 Mirrorless camera! Continuing in Aquatica’s reputation for offering premium quality and at affordable prices, the AR5 housing has the finest ergonomics and control accessibility combined with the famed ruggedness of our all aluminum construction and distinctive hard coating.

ABOUT THE CAMERA

The EOS R5 is the flagship camera body in Canon’s mirrorless line.

• 45MP Full-Frame CMOS Sensor
• 8K30 Raw and 4K120 10-Bit Video
• DIGIC X Image Processor
• Sensor-Shift 5-Axis Image Stabilization
• Subject Tracking with Deep Learning
• CFexpress & SD UHS-II Memory Card Slots

ABOUT THE HOUSING

As to be expected with all Aquatica housings, it is CNC machined from 6061 T6 Aluminum with a MIL-A-8625 anodized coating and added on top a baked on, extra tough powder coat paint. All control shafts and push buttons are made from T304 stainless steel. This, as for all our housings, will take a licking and keep going!

The AR5 housing supports not only the new RF mount lenses but also the EF mount by simply using our new adaptor extension ring #48474. This new adapter can easily be installed and will enable the AR5 housing to function with any previous Canon EF lens and its corresponding extension ring.

SURVEYOR MONITORING SYSTEM INCLUDED

What was previously an optional accessory, we are now including our field proven Surveyor Vacuum System (Pump, valve and sensor) as standard.

VIEWFINDERS

The Aquatica AR5 housing is supplied with our Galileo type eye piece. This high quality and coated optical finder gives a bright and full view of the view finder. For those seeking the ultimate in viewing for still image, the optional Aqua View Finder, available in straight and 45 degrees version, are among the best of the industry, they can easily be installed in a matter of a few minutes by the user. The enlarged and enhanced image provided by the Aqua View Finder (#20054 & 20059) is second to none in clarity; it provides the photographer with tack sharp corner to corner viewing of the camera view finder for composing and critical focusing.

SPECIFICATIONS

• Part Number:
  • 20091-NK-VC: with double Nikonos bulkheads & complete Surveyor vacuum circuitry
  • 20091-KM-VC: with single Ikelite bulkhead & complete Surveyor vacuum circuitry
  • 20091-OPT-VC: with dual optical bulkheads, LED trigger & complete Surveyor vacuum circuitry
  • 20091-KTTL-VC: with Ikelite TTL capability & complete Surveyor vacccum circuitry***Ikelite DL5 External converter required #46074. Purchased separately from Ikelite.
• Composition: Aerospace grade 6061 T6 Aluminum with MIL-A-8625 Anodized Coating then finished with a baked on, super tough, abrasion resistant powder coat paint. Control shafts and all push buttons are T304 Stainless Steel
• HDMI: Large 23.75mm (.950 inch) HDMI Bulkhead Opening
• Depth Rating: 90m ~ 300 ft.  Can be upgraded to 130m, ~ 450 ft with our deep spring kit
• Weight: 6.5 lb (2.94kg)
• Dimensions: 9.50” x 7.10” x 5.96” (W x H x D) (241mm x 180mm x 151mm)
• Port System: Compatible with all Aquatica DSLR sized Bayonet Mount Ports

Supported Accessories:

• Aqua View and Aqua View 45 & 180 viewfinders
• Full line of the Delta 3 Arm System
• 5HD Monitor
• Aquatica Close Up Kit
• Aquatica Housing Lanyard Kit

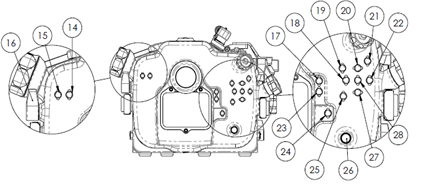

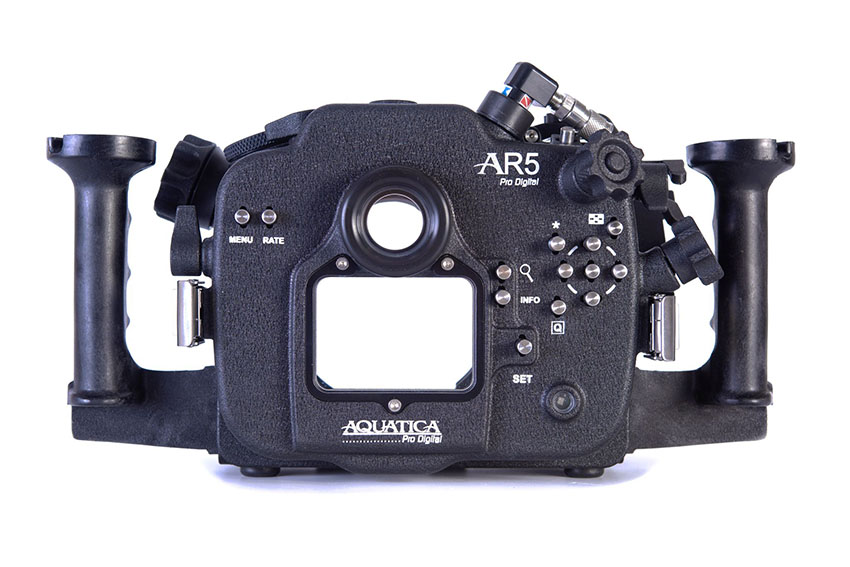

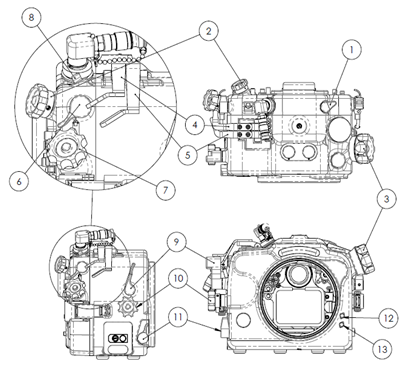

HOUSING FUNCTIONS

1. ON-OFF Lever
2. Quick Control Dial 2
3. Zoom-Focus Wheel
4. Movie Shooting Button
5. M-FN mode Button
6. AF-ON start Button
7. Quick Control Dial 1
8. Mode Button
9. Main Dial
10. Shutter Release Lever
11. Port Release Lever
12. RF Lens Release Button
13. EF Lens Release Button

14. Rate Button
15. Menu Button
16. Playback button
17. Magnify/Reduce Button
18. Multicontrol Left
19. AE Lock Button
20. Multicontrol up
21. AF Point Select Button
22. Multicontrol Right
23. Info Button
24. Set Button
25. Quick Control Button
26. Alarm LED window
27. Multicontrol Down
28. Multicontrol Center

For more information, please contact: info@aquatica.ca or call 514-737-9481

Retail: $ 3,399.00 USD
